Japanese train 1-2 JNR(JR) Electric Locomotive (EL)

It is introduced here about the Japanese electric locomotive.

The form of the vehicles indication(EL)

Locomotives during the activity now.　　　　　　　　　　　　　　　　　　　　　　　　The Old timers

photograph performance type / kind and use
1. Made in JNR age.

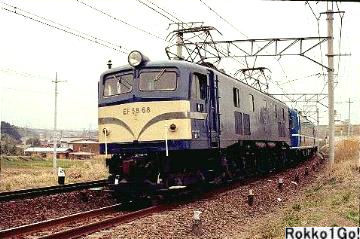

EF58 1950kw
100km/h		 EF58

It is the star locomotive of Japan which has the body of the streamline by one for the express passenger car.
And, the No.61 was the Imperial Household special locomotive.
An event train and so on is being pulled at present.

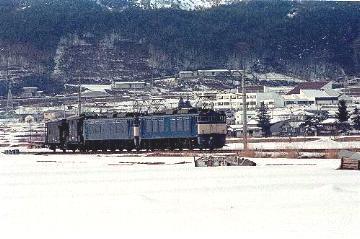

EF64 2550kw
100km/h		 EF64

For mountain slope line
1-12,29-55 both
13-28,50-79 only freight
1001-1032 both at Jyoetu line
1033-1053 only freight at Jyoetu line
EF65 2550kw
100km/h(FC)
110km/h(PC)		 EF65

0 group : only freight
500 group : express passenger or freight
1000 group : express passenger or freight and heavy freight by double connection

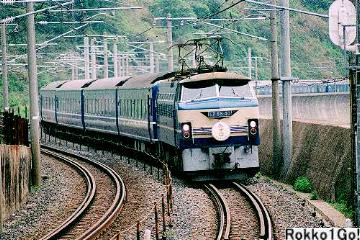

EF66 3900kw
110km/h		 EF66

0 group : express passenger or freight
100 group : only freight train
ED75 1900kw
100km/h		 ED75

A multipurpose locomotive
0 group : original model (50Hz)
300 group : for Kyusyu area (60Hz)
500 group : for Hokkaido area (50Hz)
700 group : salt harm countermeasure car (50Hz)
1000 group : high speed brake system model (50Hz)
ED76 1900kw
100km/h		 ED76

The thing that a steam occurrence device was put on ED75.
0 group : original model for Kyusyu area (60Hz)
1000 group : high speed type of 0 series (60Hz)
500 group : for Hokkaido area (50Hz)
550 group : 500 series was remodeled into the one for the  Seikan-tunnel

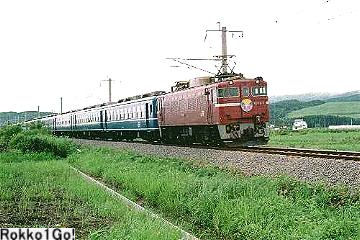

ED79 1900kw
110km/h		 ED79

For Seikan-tunnel only.
This type is removed from ED75-700 series.

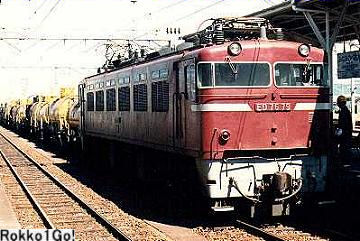

EF81 2550kw
110km/h		 EF81

AC-DC double operation locomotive for all use.
0 group : original type
300 group : stainless steel body
400 group : for Kyusyu area
2. Made in JR age.
EF200 series 6000kw
120km/h		 EF200

JR-freight new product series
For heavy freight , express freight

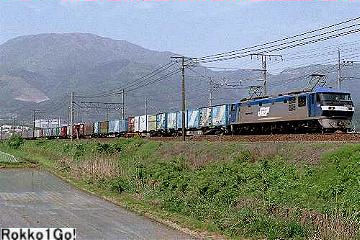

EF210 series 3390kw
120km/h		 EF210

JR-freight new product series
EH500 series 4000kw
110km/h		 EH500

JR-freight new product series
AC-DC double operation and heavy or express freight for Tohoku line.
One unit is made of the two bodies.
